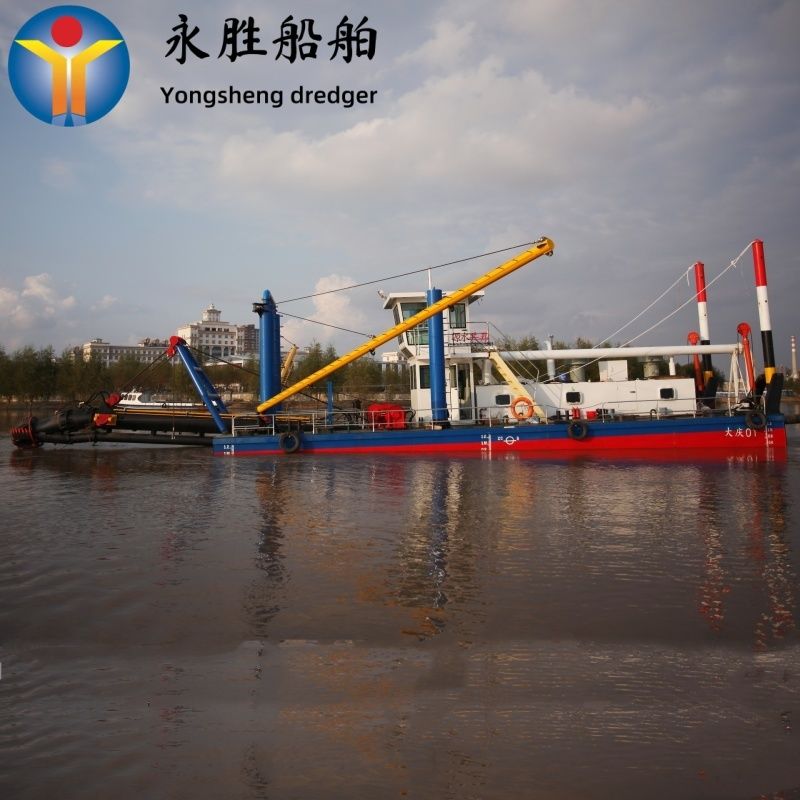

Hot selling Automated Cutter Suction Dredger for dredging

Name: Hot selling Automated Cutter Suction Dredger for dredging
Brand: Shandong Yongsheng Dredging Machinery Co., Ltd.
SKU: YSCSD500
Price: 1200000.00 USD
Availability: InStock

Ürün Ayrıntıları

Place of Origin: shandong

Marka adı: yongsheng

Model Number: YSCSD500

Ödeme ve Nakliye Şartları

Minimum Order Quantity: 1

Packaging Details: container

Delivery Time: 50days

Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram

En İyi Fiyatı Alın

Ürün Ayrıntıları

Ürün Tanımı

Ürün Ayrıntıları

Vurgulamak:
                                                                                                                                                                                                                                                                                                                automated cutter suction dredger, dredging cutter suction dredger, hot selling cutter suction dredger


Diameter pipe:	500mm	Water flow:	900 m3/h
Solid capacity:	900 cbm/h	Main Engine:	1,193 kw Cummins engine
Max. dredging depth 45°:	15 m	Discharge distance:	1,600 m
Generator:	30kw	Hydraulic cutter power:	220 kw

Diameter pipe:	500mm
Water flow:	900 m3/h
Solid capacity:	900 cbm/h
Main Engine:	1,193 kw Cummins engine
Max. dredging depth 45°:	15 m
Discharge distance:	1,600 m
Generator:	30kw
Hydraulic cutter power:	220 kw

Ürün Tanımı

Automated Cutter Suction Dredger for Dredging

Key Specifications

Attribute	Value
Diameter pipe	500mm
Water flow	900 m3/h
Solid capacity	900 cbm/h
Main Engine	1,193 kw Cummins engine
Max. dredging depth 45°	15 m
Discharge distance	1,600 m
Generator	30kw
Hydraulic cutter power	220 kw

Product Overview

The cutter suction dredger (CSD) is a specialized marine engineering equipment essential for maritime and coastal construction projects. Renowned for its advanced design and capabilities, the CSD serves as the backbone of large-scale dredging operations worldwide.

Technical Specifications

Model: YSCSD 500
Solid capacity: 900 cbm/h
Water flow: 4,800 m3/h
LOA: 47 m
Dimensions after assembly: 47×8.8×2.5m (L×W×D)
Structure: Dismantle type for on-site assembly
Average draught: 1.6 m
Rotate speed: 1800 r/min
Auxiliary engine power: 425 kw Cummins engine
Total power: 1,648 kw

Working Principle

Excavation: The rotating cutter head cuts and loosens submerged materials including mud, clay, and soft rock.

Suction: The powerful mud pump creates vacuum to draw in the loosened materials through the suction pipe.

Transportation: Materials are pressurized and conveyed through the dredger's pipeline system.

Discharge: Materials are either directly discharged to shore or loaded onto barges for transport.

Applications

Port and waterway construction: Deepwater channel excavation, new port foundation trench excavation
Land reclamation: Island construction by blowing (capable of 4,500m³/hour)
Environmental governance: Cleaning polluted sediments, river ecological restoration
Mining and resource extraction: Subsea mineral mining (phosphate rock, tin sand, etc.)

About Yongsheng Dredging

Shandong Yongsheng Dredging Machinery Equipment Co., Ltd., established in 1995, is a comprehensive manufacturer specializing in R&D, production, and sales of cutter suction dredgers and aquatic weed harvesters. All products are ISO9001 certified and support SGS factory inspection.
